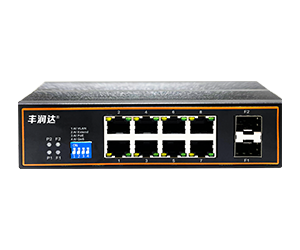

IS108GP-2F 8口千兆工业POE交换机

$0.00

● 8*10/1000/1000Mbps RJ45端口,2*SFP端口
● 小体积个性化设计,小空间灵活部署
● 无风扇,自然散热,静音节能
● 多样化的安全保护策略确保设备稳定、高可靠性运行
● 丰富的网络功能和安全功能
● 灵活的网络连接和轻松的管理

IS108GP-2F
工业POE系列

描述

IS108GP-2F

概述

Is a 8-port Gigabit industrial POE switch. It provides 8 Gigabit PoE ports and 2  Gigabit optical ports.

交换机背板带宽

20Gbps

工作湿度
5%~95% RH不凝结
包转发

14 .88Mpps

尺寸(长x宽x高)

166mm×44.5mm×100mm

交换机端口

8 * 10/ 100/ 1000Mbps RJ45 port

2 * SFP port

Specifications

Hardware Specifications

Network Interface

● 8 * 10/ 100/ 1000Mbps  RJ45 port

● 2 * SFP port

Network protocol

standard

● IEEE802 .3 、 IEEE802 .3i 、 IEEE802 .3u、

IEEE802 . 3ab、 IEEE802 . 3z、

IEEE802 . 3af/ at

Performance

Specifications

● Backplane bandwidth: 20Gbps (non-blocking)

● Packet forwarding rate: 14 .88Mpps

● MAC address table: 8 K

● Forwarding mode: store and forward

LED indicator

● Power indicator:  P 1 ,  P 2

● Ethernet port indicator: Link&Act  1~4 , PoE  1~8

● Optical port indicator: Link&Act  F1~ F2

POE pin

● 1/2(  + ),3/6/(-) ;

Power support

● Input voltage: 48-56V DC

● Input method : plug-in 4-core 5 .08mm pitch terminal block (support dual DC Power backup , built-in

overvoltage protection ,

support anti-reverse connection)

No- load power:  6 W@ 5 2 V DCoutput)

● Full load power: 1 8 6 W @ 5 2 V DC ( POE full load

● Single-port PoE maximum output power: 30W

Physical Specifications

● Shell: IP40 grade protection , corrugated high-strength metal shell

● Installation: DIN rail installation

● Dimensions ( LxWxH) :  166mm×44.5mm×100mm

Environmental

Specifications

● Working temperature: -40~75 ° C

● Storage temperature: -40~75℃

● Working humidity: 5%~95% RH without condensation

● Storage humidity: 5%~95% RH without condensation

Safety regulations

● CE/ ROHS/ FCC
