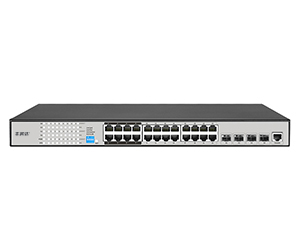

S5700-24GP-4FR 24口千兆三层管理PoE交换机

$0.00
  • 24个10/100/1000Mbps RJ45端口(POE)
  • 4个千兆SFP光纤端口
  • 满足用户对网络设备易于管理、安全性高、成本低的要求
  • 所有端口均支持6KV防雷
S5700-24GP-4FR
10G LAY3系列 10G POE和以太网REALTEK芯片组

描述

S5700-24GP-4FR-EN

概述

The product adopts a new generation of high- performance hardware and software platform,provides flexible and cost- effective full-gigabit access and uplink ports.

交换机背板带宽

56Gbps

工作湿度
10%  ~  90% RH不凝结
包转发

41.7Mpps

尺寸(长x宽x高)

440mm×320mm×44mm

交换机端口

24 10/100/1000Mbps RJ45 ports (POE)

4 Gigabit SFP fiber ports

Specifications

Hardware Specifications

Network Interface

● 24 10/100/1000Mbps RJ45 ports (POE)

● 4 Gigabit SFP fiber ports

● 1 Console port

Network protocol standard

● IEEE 802.3、IEEE 802.3i、IEEE 802.3u、IEEE 802.3ab、  IEEE 802.3z、IEEE 802.3ad、IEEE 802.3x、IEEE 802.1p、 IEEE 802.1q、IEEE 802.1d、IEEE 802.1s、IEEE 802.1w、 IEEE 802.3af、IEEE 802.3at

Performance Specifications

● Bandwidth :56Gbps

● Packet forwarding rate:41.7Mpps

● MAC address table:16K ● Port cache:12Mb

● Forwarding Mode: Store and Forward

LED Indicator light

● 28 Link/Act indicators

● 24 PoE Indicator light

● 1 Power indicator ●1 SYS indicator

POE Pin

● 1/2( +) ,3/6 ( -)

Power support

● Input power:AC 100-240V/50-60Hz

● Single port maximum output power:30W

● The maximum power of the whole machine:360W

Physical Specifications

● Dimensions (LxWxH):440mm×320mm×44mm



Environmental Specifications

● Operating temperature:0°C~40°C

● Storage temperature:-40℃〜70℃

● Working humidity: 10%~ 90% RH non-condensing

● Storage humidity: 5%~90% RH non-condensing

Safety regulations

● CE/ROHS/FCC

Software Specifications

Protocol

standard

IEEE 802.3:Ethernet Media Access Control (MAC) Protocol

IEEE 802.3i:10BASE-TEthernet

IEEE 802.3u:100BASE-TXFast Ethernet

IEEE 802.3ab:1000BASE-TGigabit Ethernet

IEEE 802.3z:1000BASE-XGigabit Ethernet (SFP)

IEEE 802.3ad:Standard way to perform link aggregation

IEEE 802.3x:flow control

IEEE 802. 1p:LAN Layer 2 QoS/Cos protocol for traffic prioritization (multicast filtering function)

IEEE 802.1q:VLANBridge operation

IEEE 802.1d:STP Spanning tree

IEEE 802.1s:MSTP  Spanning tree

IEEE 802.1w:RSTP  Spanning tree

IEEE 802.3af&at

One-click

shortcut

function

AI VLAN

AI Extend

AI PoE

AI QoS

Layer 3

interface

Support Layer 3 interface

Support IPv4, IPv6 address configuration

Support ARP configuration

ND configuration supported

Layer 3

routing

Support IPv4 static routing

Support IPv4 dynamic routing RIP v1/v2

Support IPv4 dynamic routing OSPFv2

Support IPv6 static routing

Support IPv6 dynamic routing RIPng

Support IPv6 dynamic routing OSPFv3

Software Specifications

VLAN

Support 4K VLAN

Support 802.1QVLAN、MAC VLAN ,IPVLAN,Voice VLAN

DHCP

Support DHCP server

Support DHCP relay

Support DHCP Snooping

MAC address table

Follow IEEE 802.1d standard

Support MAC address automatic learning and aging

Support static, dynamic, filtering address table

Safety features

Password protection

Support to restrict user access based on port number, IP address, MAC address Support HTTPS、SSL V3、TLS V1、SSH V1/V2

Support IP-MAC-PORT ternary binding

Support ARP protection, IP source protection, DoS protection

Support DHCP Snooping, DHCP attack defense护

Support 802. 1X authentication, AAA

Support port security and port isolation

Support CPU protection function

PoE manage

Support PoE power limit

Support PoE chip status check

Support setting PoE port priority

Support setting PoE power supply time period

Support intelligent power supply

(ACL)

Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function

Support port mirroring, flow rate limiting, QoS remarking

(QoS)

Supports 8 port queues

Support port priority, 802. 1P priority, DSCP priority

Support SP, WRR, SP+WRR, WFQ priority scheduling algorithm

spanning tree

Support STP (IEEE 802.1d), RSTP (IEEE 802. 1w) and MSTP (IEEE 802.1s) protocols

Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering

Support optical port 50ms switching

Software Specifications

Multicast

Support IGMP v1/v2/v3 Snooping

Support MLD v1/v2 Snooping

Fast leave mechanism and querier supporting Layer 2 multicast

Support Layer 2 IPv4 static multicast

Support Layer 2 IPv6 static multicast

Support IGMP v1/v2/v3 Layer 3 Multicast

Storm

suppression

Support multicast suppression

Support broadcast suppression

Support unknown unicast suppression

Link

aggregation

Support static aggregation

Support dynamic aggregation

Support based on IP, MAC, mixed load balancing mode

A maximum of 32 aggregation groups are supported

IPv6

Support Pv6 Ping、IPv6 Tracert、IPv6 Telnet

Support IPv6 SSH 、IPv6 SSL

Management and

maintenance

Support WEB Managed(HTTP、HTTPS、SSL V3)

Support CLI(Telnet、SSH V1/V2、Local Console Port)

Support SNMP V1/V2/V3

Support RMON V1/V2

Support LLDP device discovery

Support NTP time synchronization

Support DNS Client

Support CPU monitoring, memory monitoring

Support system log, graded warning

Support Ping, Tracert detection, cable detection

Support Apollo cloud platform one-stop management and maintenance
