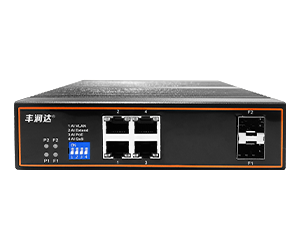

IS104GP-2F 6口千兆工业POE交换机
● 4*10/1000/1000Mbps RJ45端口，2*SFP端口
● 小体积个性化设计，小空间灵活部署
● 多样化的安全保护策略确保设备稳定、高可靠性运行
● 高质量的硬件设计和稳定的设备性能
● 丰富的网络功能和安全功能
● 灵活的网络连接和轻松的管理
Description
概述
Is a 6-port Gigabit industrial POE switch. It provides 4 Gigabit PoE ports and 2 Gigabit optical ports
交换机背板带宽
12Gbps
工作湿度
包转发
8 .9Mpps
尺寸（长x宽x高）
150mm×127mm×40mm
交换机端口
4 * 10/ 100/ 1000Mbps RJ45 port
2 * SFP port
Specifications
|
Hardware Specifications |
|
|
Network Interface |
● 4 * 10/ 100/ 1000Mbps RJ45 port ● 2 * SFP port |
|
Network protocol standard |
● IEEE802 .3 、 IEEE802 .3i 、 IEEE802 .3u、 IEEE802 . 3ab、 IEEE802 . 3z、 IEEE802 . 3af/ at |
|
Performance Specifications |
● Backplane bandwidth: 12Gbps (non-blocking) ● Packet forwarding rate: 8 .9Mpps ● MAC address table: 4 K ● Forwarding mode: store and forward |
|
LED indicator |
● Power indicator: P 1 , P 2 ● Ethernet port indicator: Link&Act 1~4 , PoE 1~4 ● Optical port indicator: Link&Act F1~ F2 |
|
POE pin |
● 1/2（ + ），3/6/(-) ； |
|
Power support |
● Input voltage: 48-56V DC ● Input method : plug-in 4-core 5 .08mm pitch terminal block (support dual DC Power backup , built-in overvoltage protection , support anti-reverse connection) No- load power: 5 W@ 5 2 V DCoutput) ● Full load power: 1 2 5 W @ 5 2 V DC ( POE full load） ● Single-port PoE maximum output power: 30W |
|
Physical Specifications |
● Shell: IP40 grade protection , corrugated high-strength metal shell ● Installation: DIN rail installation ● Dimensions ( LxWxH) : 150mm×127mm×40mm |
|
Environmental Specifications |
● Working temperature: -40~85 ° C ● Storage temperature: -40~85℃ ● Working humidity: 5%~95% RH without condensation ● Storage humidity: 5%~95% RH without condensation |
|
Safety regulations |
● CE/ ROHS/ FCC |
Additional information
| 型号 | IS104GP-2F |
|---|---|
| 系列 |
